Home / Product / Street Lighting / Functional Lighting / D-34

D-34

Die-casting aluminium body, super white tempered glass, Chrome plastic reflector.
Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
High quality LED chips, Driver with 0-10V/DALI/programmed options, and with surge protection up to 20KV.
Button type opening device, equipped with a variety of mounting brackets and different installation methods.
LED module is used inside, which is easy to install and replace.
Top and side fixing and hanging 3 installations, angle can be adjustable, installation tube diameter Ø60/Ø76mm.
Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
Street lighting control used with smart control technology. It can be compatible with remote management system.
All external screws are made of 304 stainless steel.

Download Brochure

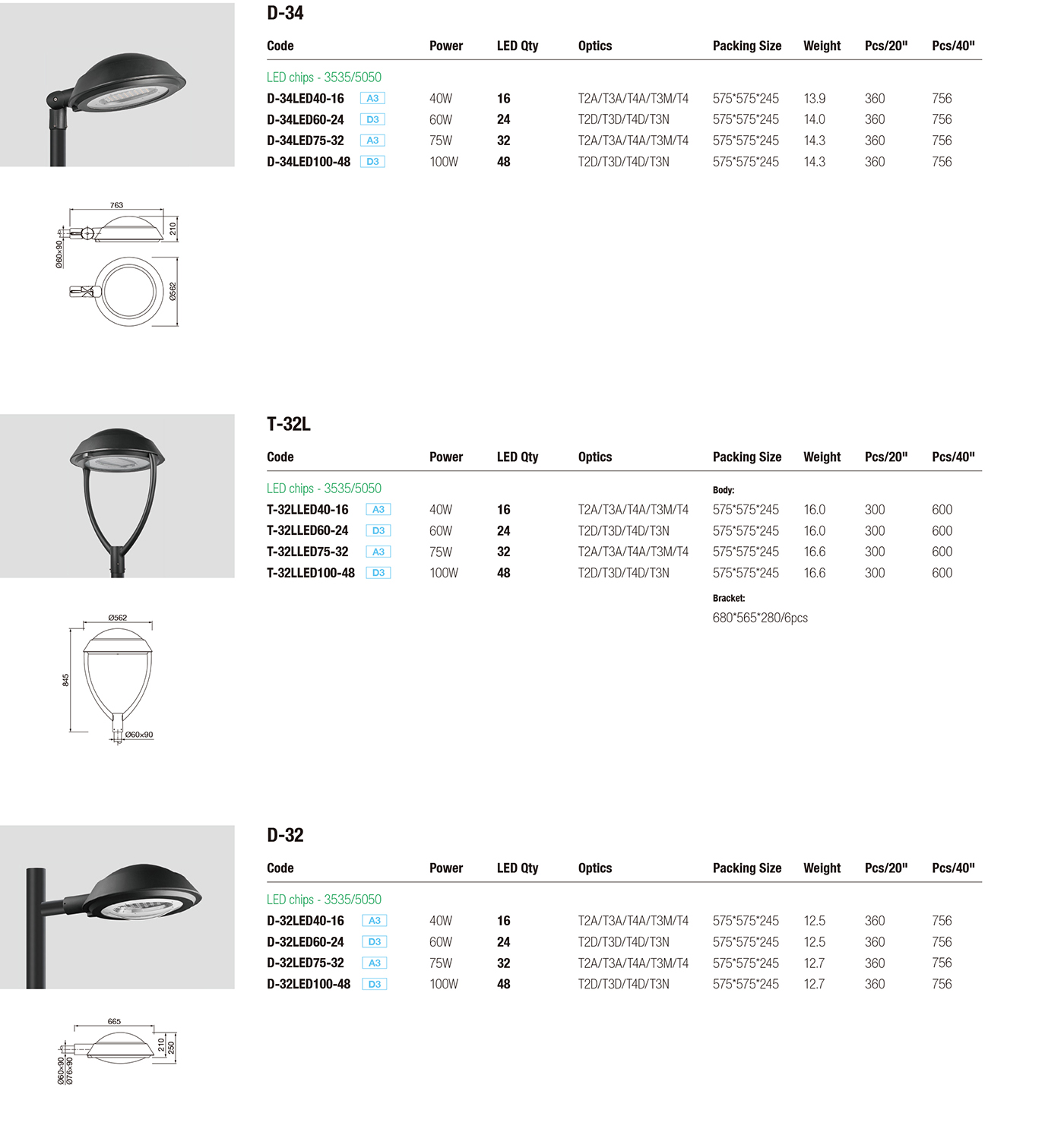

Specification

Installation Guide

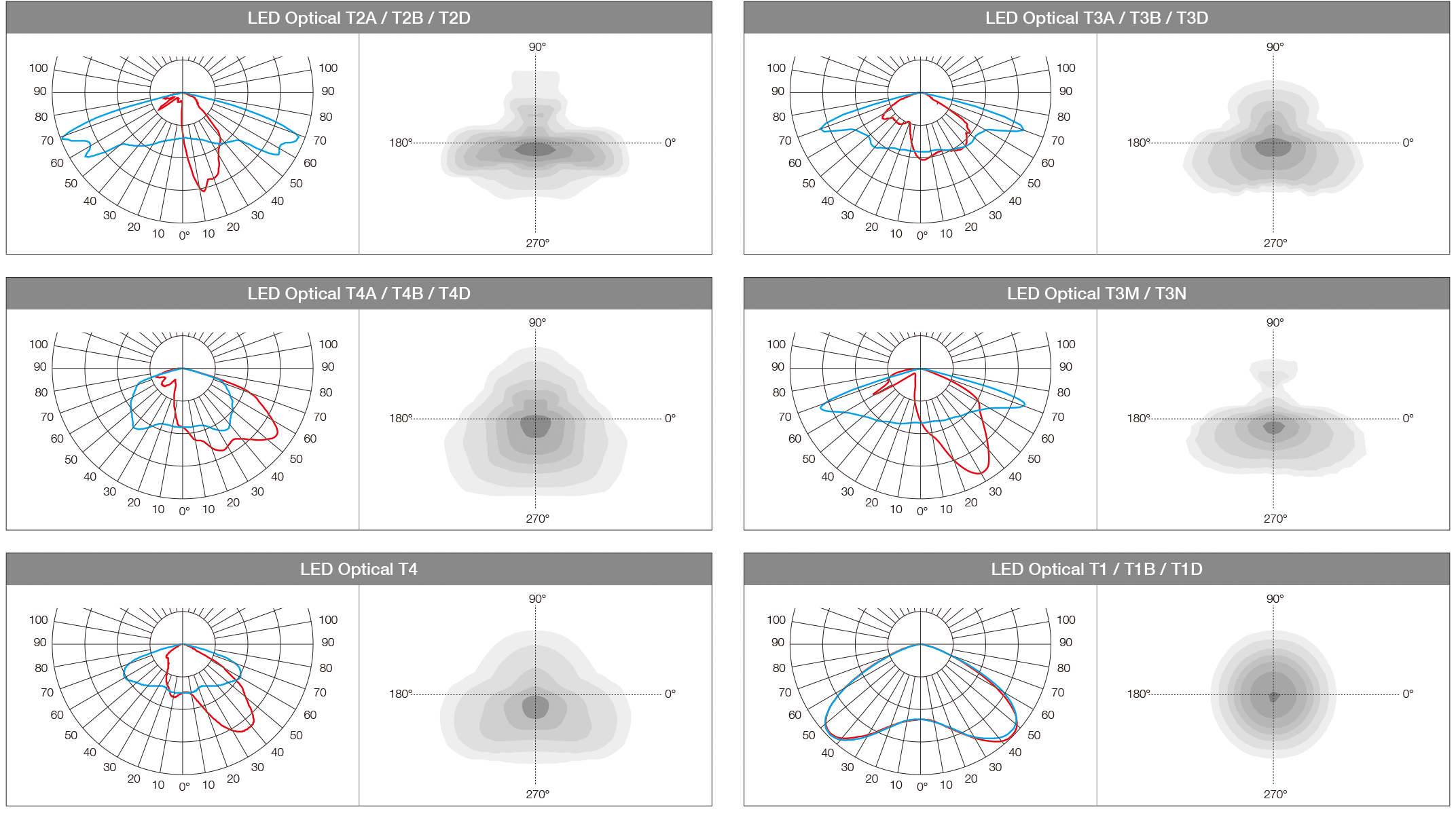

Photometric
