Home / Product / Street Lighting / Residential Lighting / T-219

T-219

Description

  • Die-casting aluminium boby, super white tempered glass.
  • Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.
  • Tool-free replaceable with push-botton for opened device, The body can be detached and replaced easily.
  • There are three installation modes, installation tube diameter Ø60/Ø76mm.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • Street lighting control used with smart control technology. It can be compatible with remote management system.
  • All external screws are made of 304 stainless steel.
Lamp power: 150-360W
Output lumen:  22000-52000LM
Installation method： 3 mounting brackets optional
Color temperature option: 3000K/4000K
IP grade:  IP66
IK level: IK09
Installation pipe diameter: Ø76mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Application

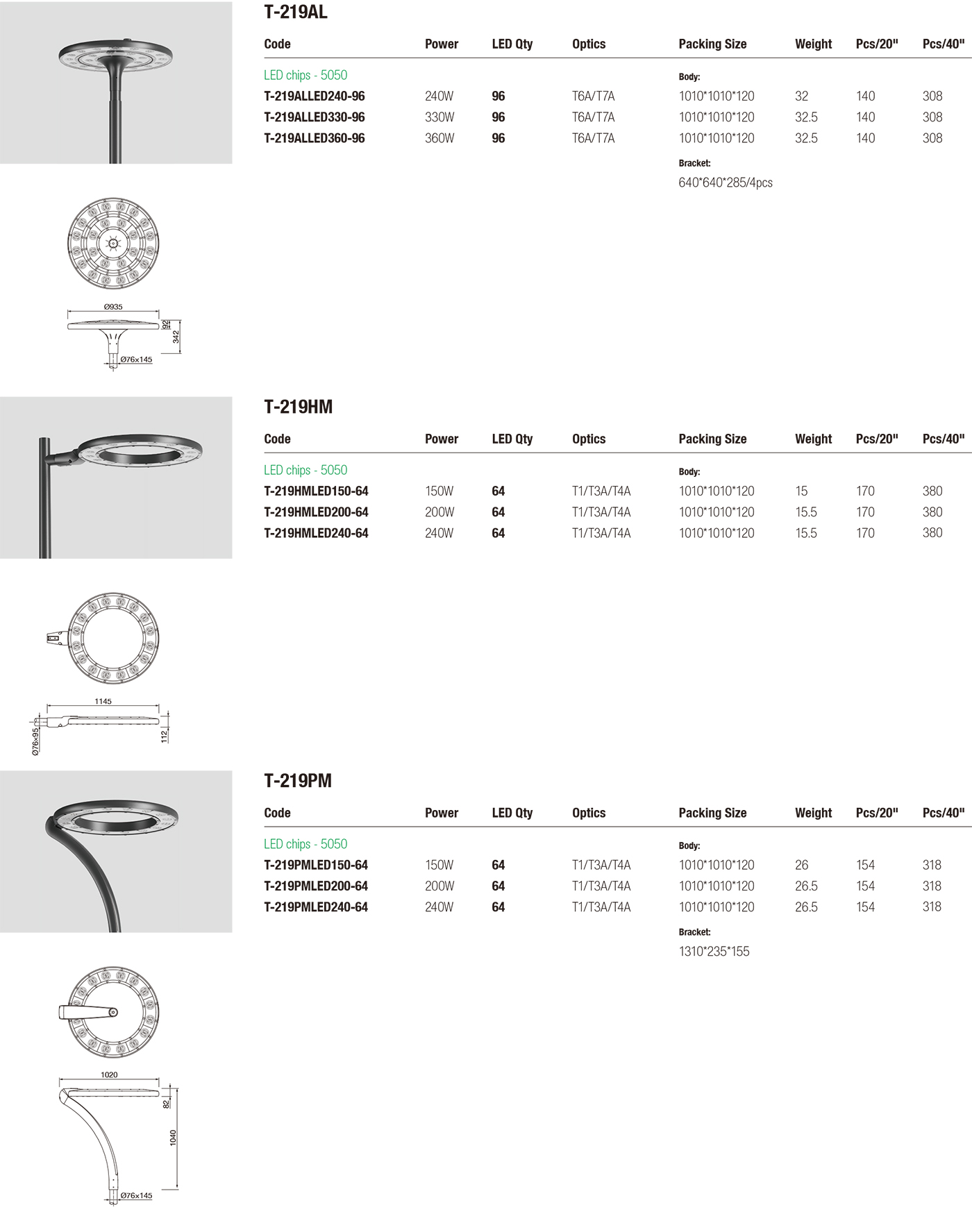

Technology data

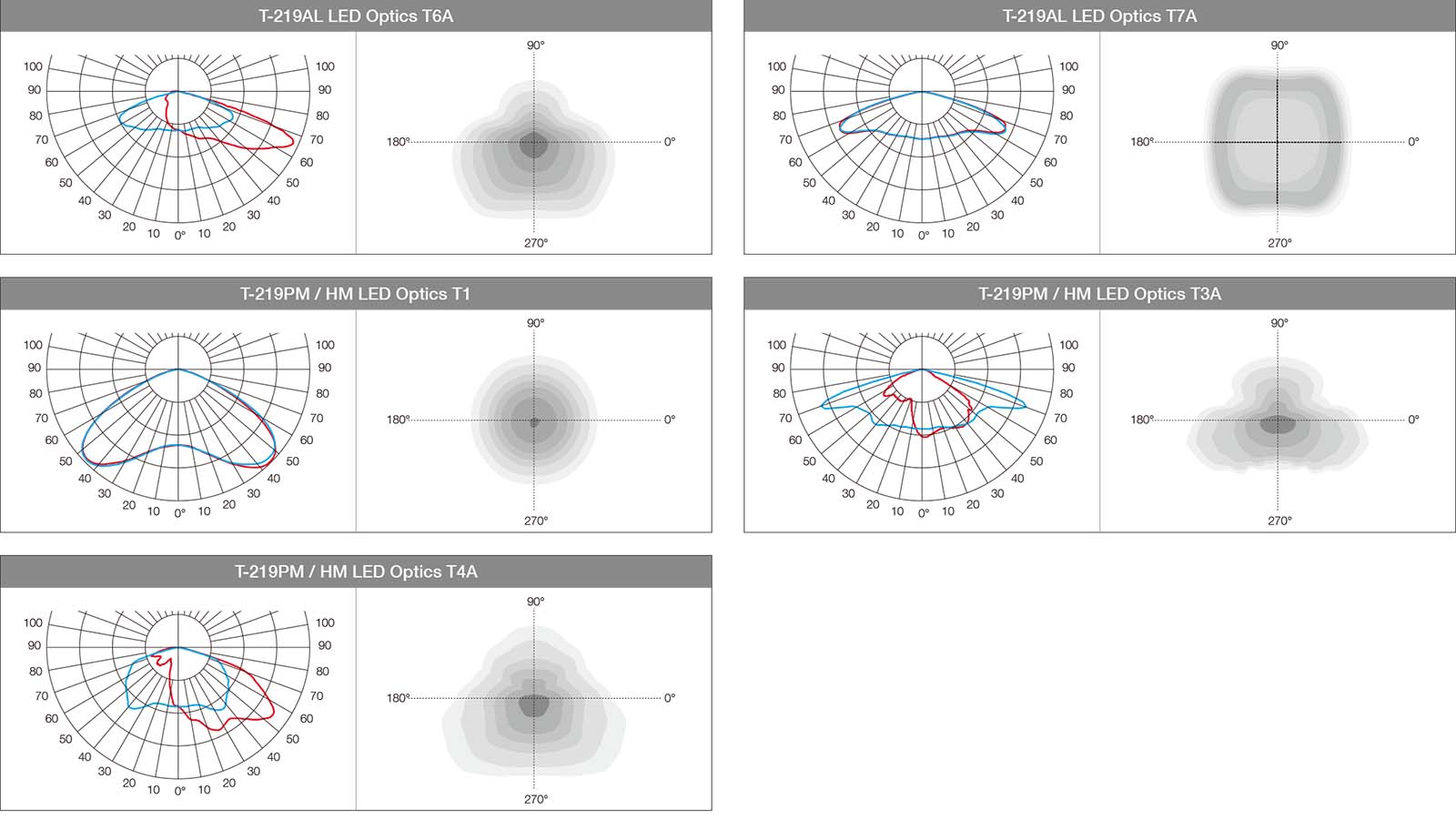

Optical application
