D-191S

Description

  • Die-casting aluminium body, super white tempered glass, white PC plastic reflector.
  • Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.
  • There are a variety of mounting brackets options, form of different shapes of lighitng.
  • Top and side fixing, angle can be adjustable, installation tube diameter Ø60/Ø76mm.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • Street lighting control used with smart control technology. It can be compatible with remote management system.
  • All external screws are made of 304 stainless steel.
Lamp power: 40-75W
Output lumen:  4000-112000LM
Number of size: 2 sizes for selection
Color temperature option: 3000K/4000K/Dimming
IP grade:  IP66
IK level: IK08
Installation pipe diameter: Ø60/Ø38mm
Other options: Solar version available

DOWNLOADS

Photometric Specification Installation Guide Photometric

Application

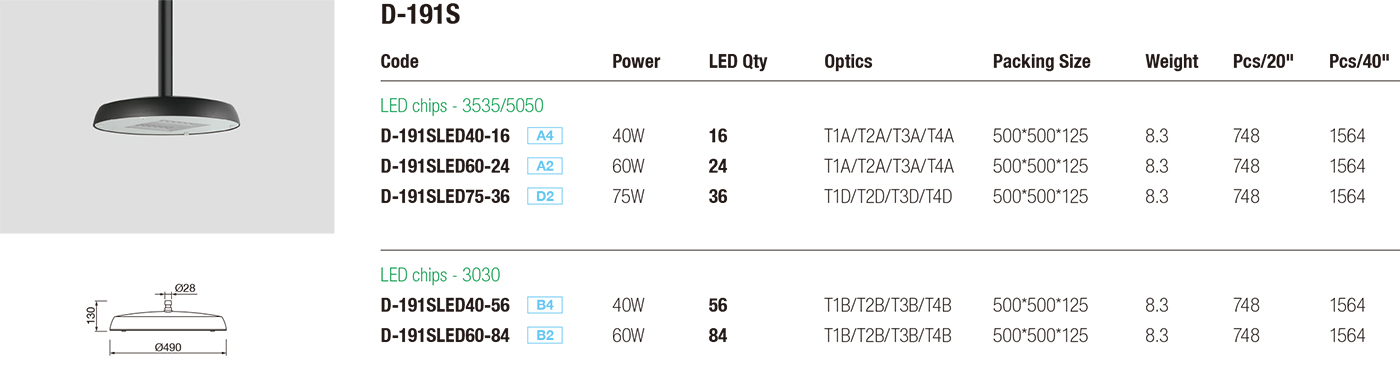

Technology data

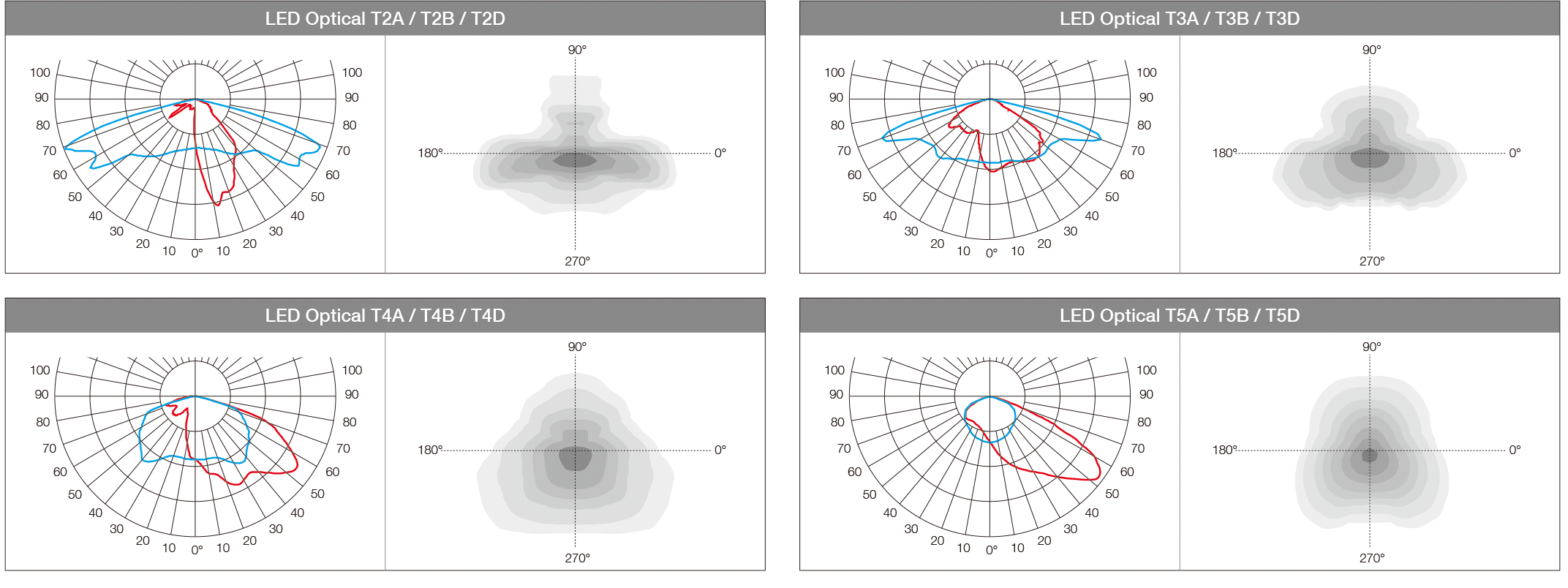

Optical application
