D-32S

Description

  • Die-casting aluminium body, super white tempered glass, Chrome plastic reflector.
  • Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • High quality LED chips, Driver with 0-10V/DALI/programmed options, and with surge protection up to 20KV.
  • Button type opening device, equipped with a variety of mounting brackets and different installation methods.
  • LED module is used inside, which is easy to install and replace.
  • Top and side fixing and hanging 3 installations, angle can be adjustable, installation tube diameter Ø60/Ø76mm.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • Street lighting control used with smart control technology. It can be compatible with remote management system.
  • All external screws are made of 304 stainless steel.
Lamp power: 40-100W
Output lumen:  5800-14500LM
Installation method： hoisting
Color temperature option: 3000K/4000K
IP grade:  IP65
IK level: IK09
Installation pipe diameter: Ø38mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Application

Technology data

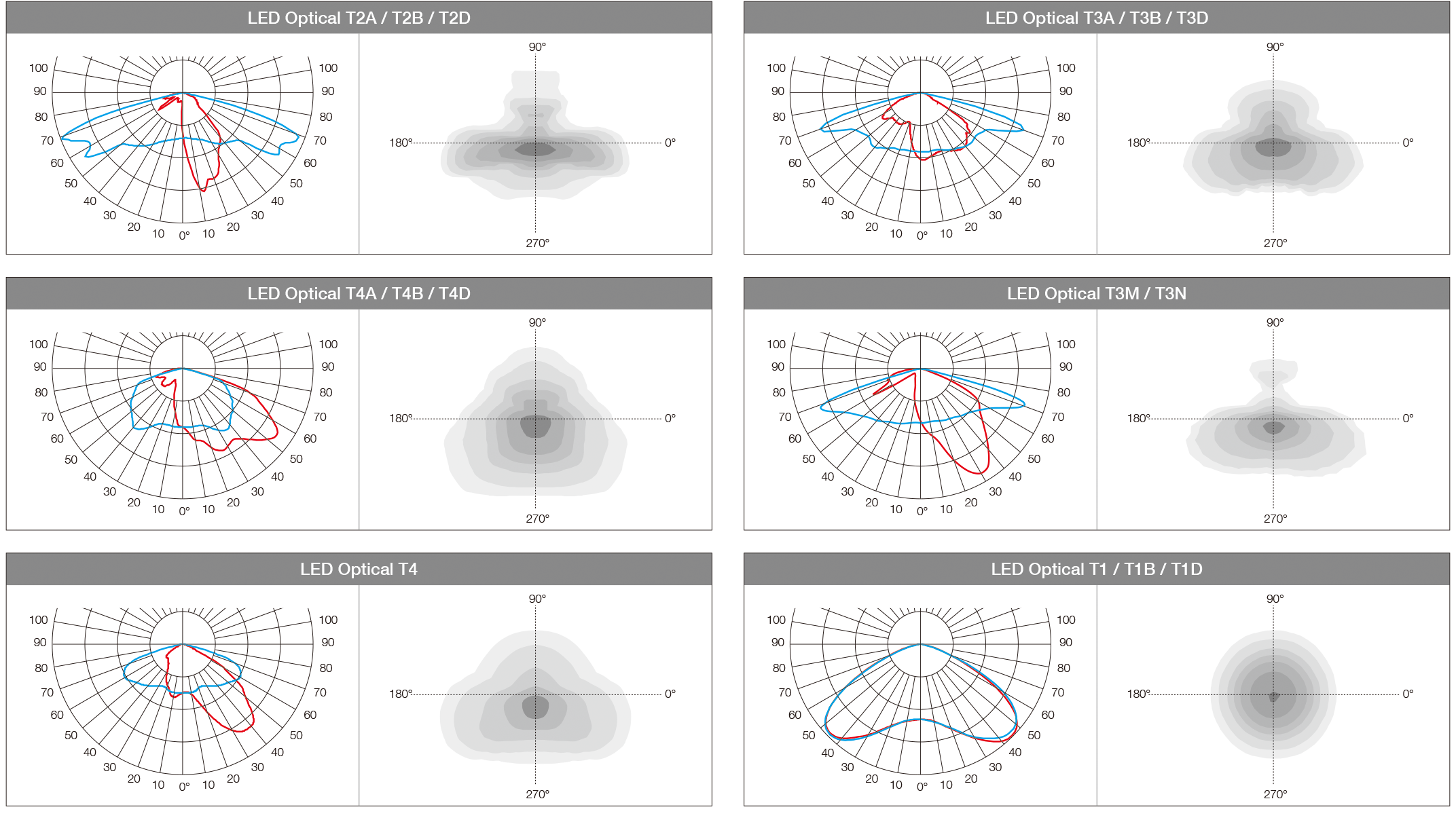

Optical application
