L-02

Description

  • Extrued aluminium body and flush end cover in die-casting complete with silicone gaskets.
  • Super white tempered glass, with high visual comfort and uniform lighting distribution.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • Wall and ceiling mount as well as support with adjustable arms.
  • Multiple optics be options, suitable for lighting requirements in different applications.
  • The maximum surface temperature of all contact temperature <50℃ for safety and reliable.
  • All external screw are made of 304 stainless steel.
  • The luminaire technical characteristics conform to EN 60598-1 standards.
Power: 12W/36W/60W
Light flux LM: 1140-5700LM
Nominal efficacy: 90-100 Lm/W (Ra80)
CCT: 2700K/3000K/4000K/RGBW
Options: Switch/DMX
Input volltage: AC 110V-277V
Installation method： Celling-mounted/Wall-mounted
Lengths (range cm) 326mm/950mm/1470mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

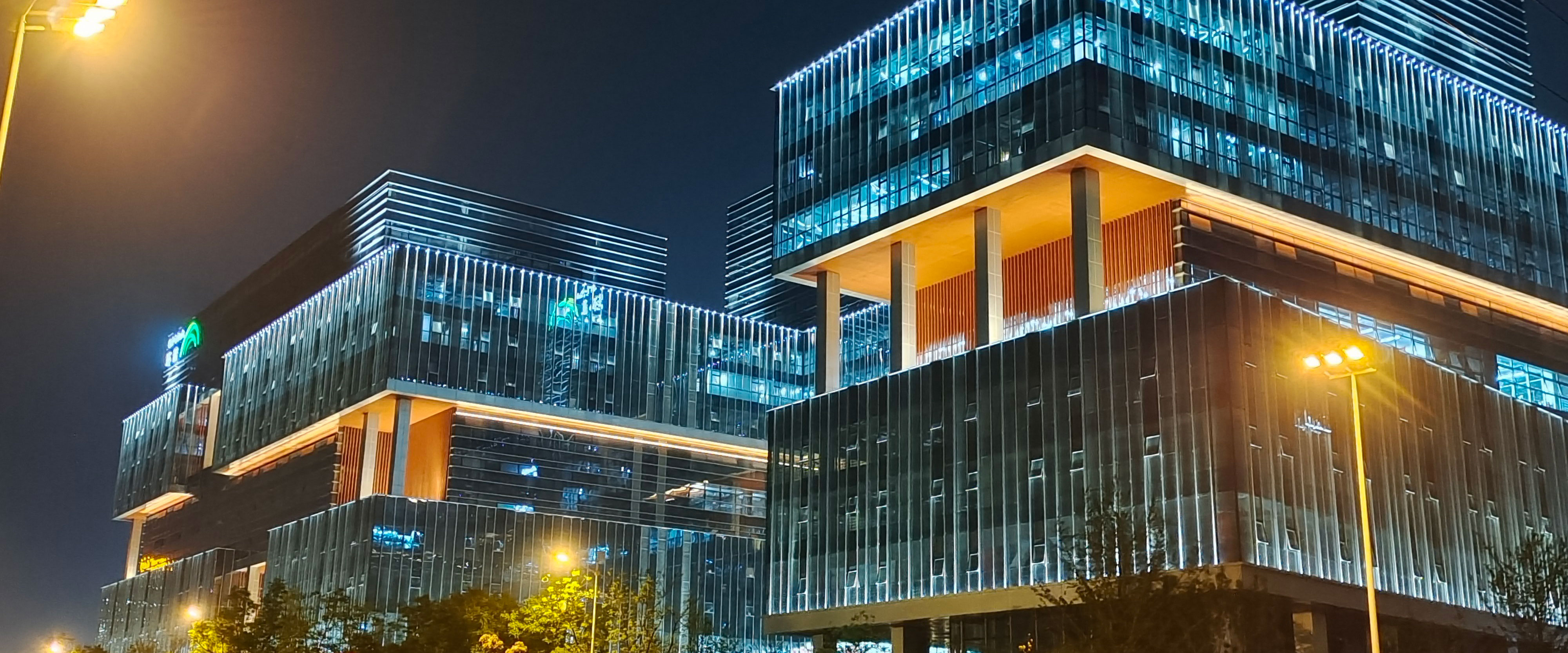

Application

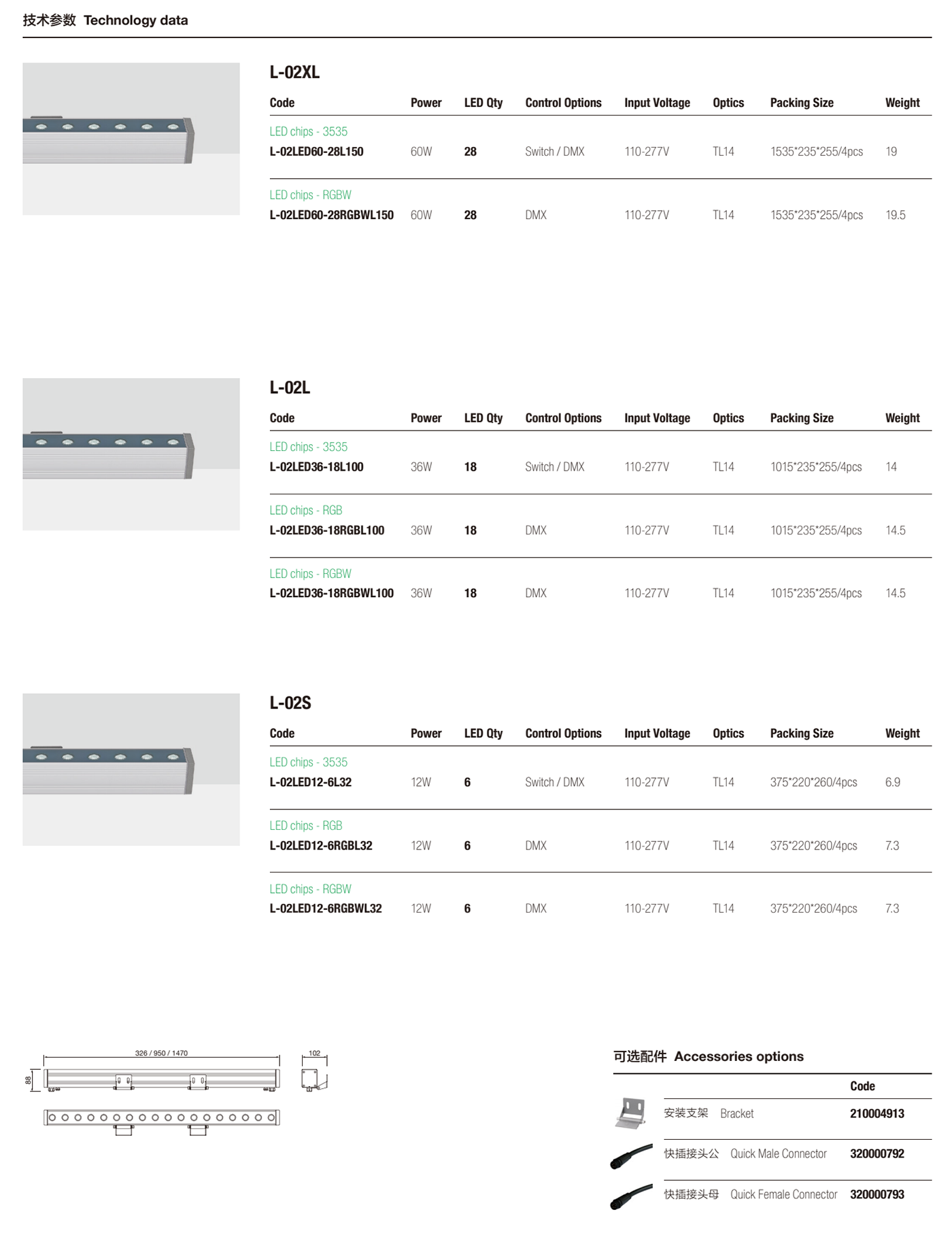

Technology data

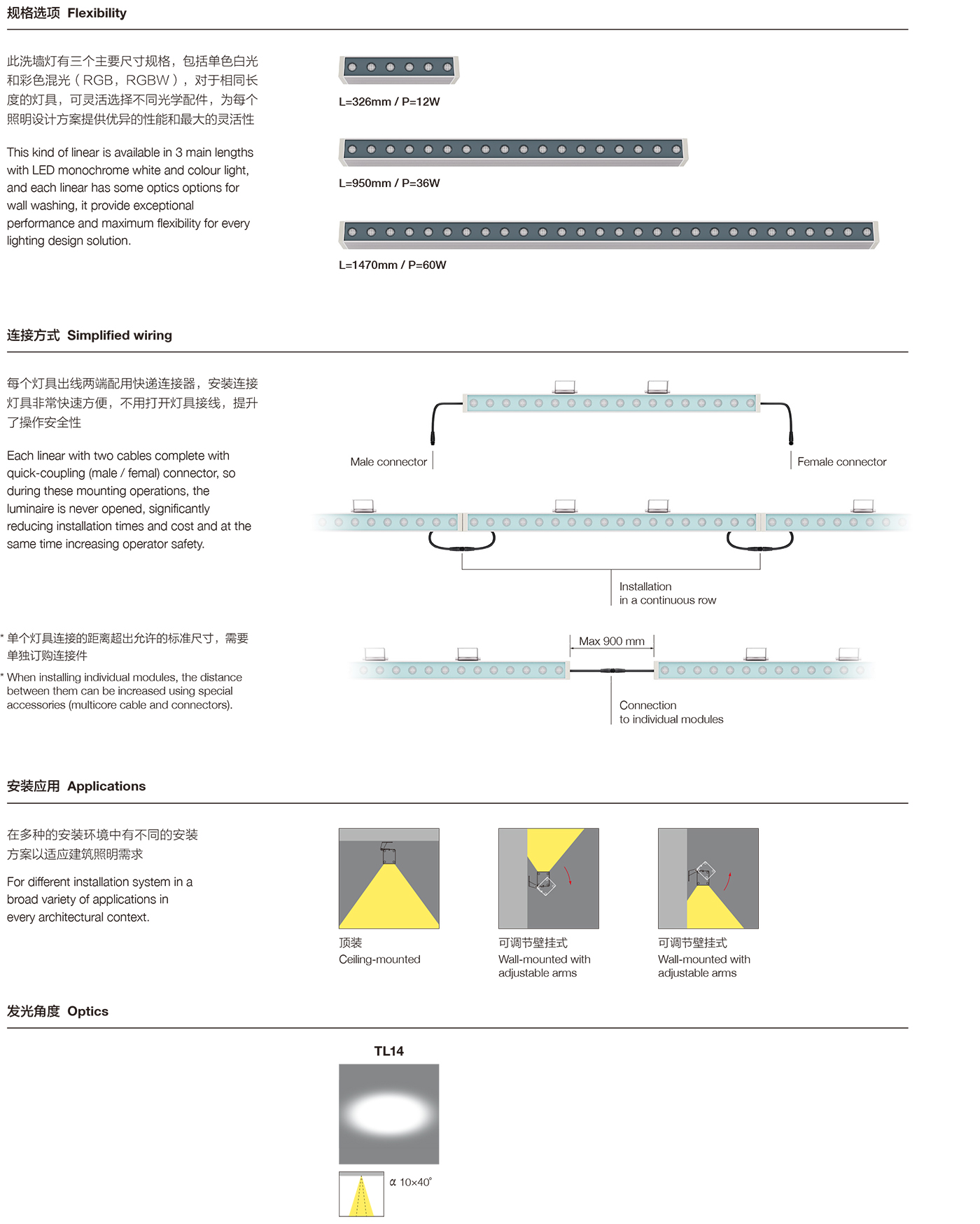

Optical application
