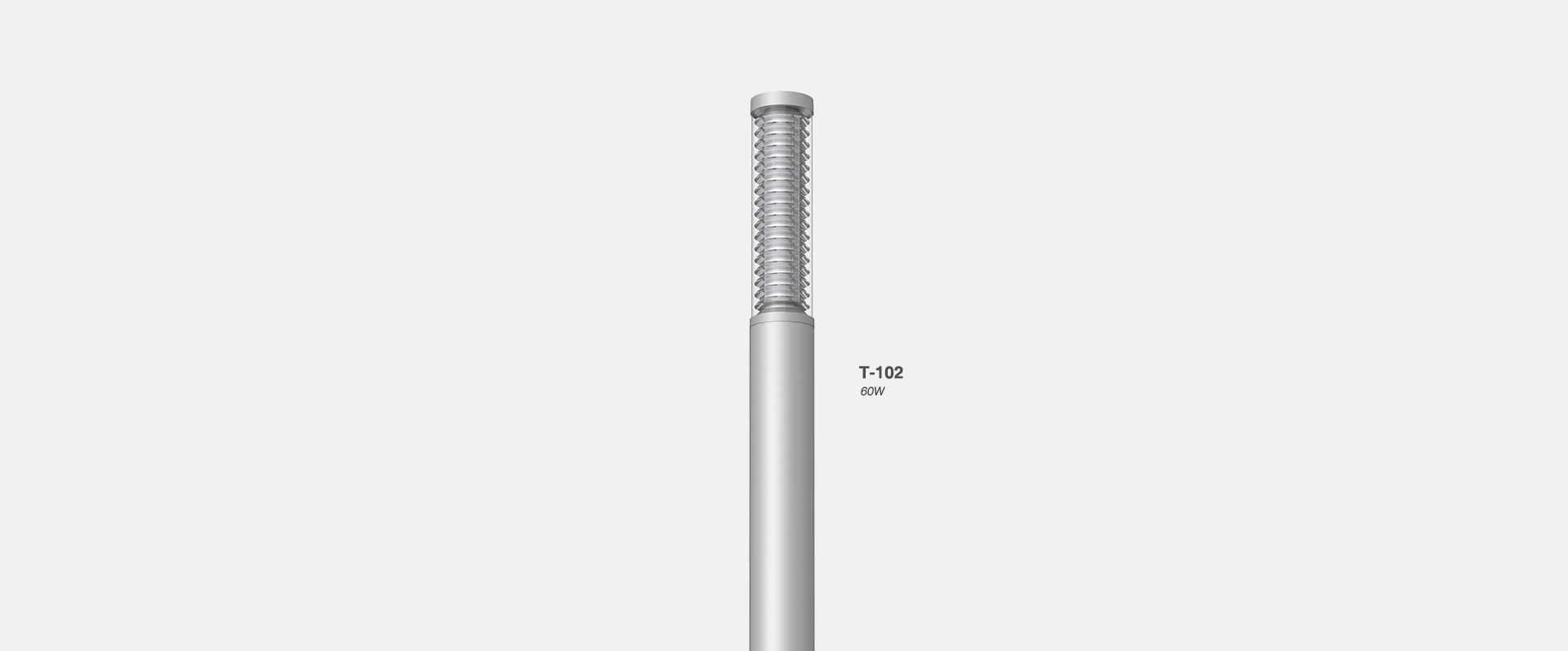

T-102

Description

  • Die-casting aluminium top cover, extruded aluminaium column pole, the height according to the client required, PC transparent diffuser.
  • There with frosted glass and middle SMD light source with diffusion cover and anti glare rouvre.
  • High quality LED chips, Driver with 0-10V/DALI/programmed options, and with surge protection up to 20KV.
  • LED module is used inside, Integrated electrical components which is easy to install and replace.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • Street lighting control used with smart control technology. It can be compatible with remote management system.
  • All external screws are made of 304 stainless steel.
Lamp power: 60W
Output lumen:  5000LM
Installation method： Vertical mounting
Color temperature option: 3000K/4000K
IP grade:  IP66
IK level: IK09

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Technology data

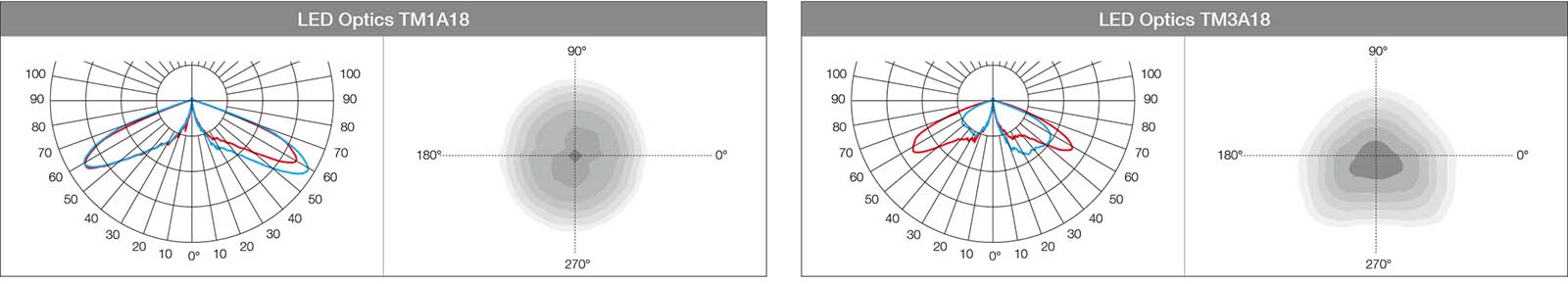

Optical application
